Best practices of Software Engineering

Last updated: Feb. 23, 2006

Objectives:

• Identify symptoms of software development problems.

• Explain the Best Practices.

• Present the Rational Unified Process (RUP) within the context of the Best Practices.

Symptoms of Software Development Problems:

• User or business needs not met

• Requirements not addressed

• Modules not integrating

• Difficulties with maintenance

• Late discovery of flaws

• Poor quality of end-user experience

• Poor performance under load

• No coordinated team effort

• Build-and-release issues

Trace Symptoms to Root Causes:

Best Practices Reinforce Each Other:

• In the case of our Best Practices, the whole is much greater than the sum of the parts. Each of the Best Practices reinforces and, in some cases, enables the others.

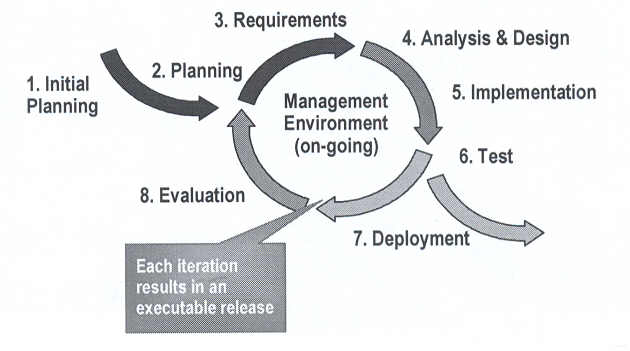

Develop Iteratively:

• Developing iteratively is a technique that is used to deliver the functionality of a system in a successive series of releases of increasing completeness. Each release is developed in a specific, fixed time period called an iteration.

• Iterations help:

  • Resolve major risks before making large investments.

  • Enable early user feedback.

  • Make testing and integration continuous.

  • Define a project's short-term objective milestone.

  • Make deployment of partial implementations possible.

• The earliest iterations address the greatest risks.

Manage Requirements:

• Ensures that you

  • solve the right problem

  • build the right system

• by taking a systematic approach to

  • eliciting

  • organizing

  • documenting

  • managing

• the changing requirements of a software application.

Use Component Architectures:

• Software architecture needs to be:

• Purpose of a Component-Based Architecture:
  • Basis for reuse
    • Component reuse
    • Architecture reuse
  • Basis for project management
    • Planning
    • Staffing
    • Delivery
  • Intellectual control
    • Manage complexity
    • Maintain integrity

Model Visually (Unified Modeling Language, UML):

• Captures structure and behavior
• Shows how system elements fit together
• Keeps design and implementation consistent
• Hides or exposes details as appropriate
• Promotes unambiguous communication
  • The UML provides one language for all practitioners.
  • The UML provides a rich notation for visualizing models. This includes the following key diagrams:
    • Use-case diagrams: to illustrate user interactions with the system
    • Class diagrams: to illustrate logical structure
    • Object diagrams: to illustrate objects and links
    • Component diagrams: to illustrate physical structure of the software
    • Deployment diagrams: to show the mapping of software to hardware configurations
    • Activity diagrams: to illustrate flows of events
    • State Machine diagrams: to illustrate behavior
    • Interaction diagrams (that is, Communication and Sequence diagrams): to illustrate behavior

Continuously Verify Quality:

• It is a lot less expensive to correct defects during development than to correct them after deployment.
• Testing Dimensions of Quality:
  • Functionality: Test the accurate workings of each usage scenario.
  • Usability: Test application from the perspective of convenience to the end user.
  • Reliability: Test that the application behaves consistently and predictably.
  • Performance: Test the online response under average and peak loading.
  • Supportability: Test the ability to maintain and support the application under production use.

Manage Change:

• To avoid confusion, have:
  • Secure workspaces for each developer
  • Automated integration/build management
  • Parallel development
• A key challenge to developing software-intensive systems is the need to cope with multiple developers, organized into different teams, possibly at different sites, all working together on multiple iterations, releases, products, and platforms. Three common problems that result are:
  • Simultaneous update: When two or more roles separately modify the same artifact, the last one to make changes destroys the work of the others.
  • Limited notification: When a problem is fixed in shared artifacts, some of the developers are not notified of the change.
  • Multiple versions: With iterative development, it would not be unusual to have multiple versions of an artifact in different stages of development at the same time.
• Unified Change Management (UCM) involves:
  • Management across the lifecycle
    • System
    • Project management
  • Activity-based management
    • Tasks
    • Defects
    • Enhancements
  • Progress tracking
    • Charts
    • Reports

Rational Unified Process (RUP) Implements Best Practices:

• Why have a process?
  • It provides guidelines for efficient development of quality software
  • It reduces risk and increases predictability
  • It promotes a common vision and culture
  • It captures and institutionalizes Best Practices
• The RUP is a generic business process for object-oriented software engineering. It describes a family of related software-engineering processes sharing a common structure and a common process architecture. It provides a disciplined approach to assigning tasks and responsibilities within a development organization. Its goal is to ensure the production of high-quality software that meets the needs of its end users within a predictable schedule and budget. The RUP captures the Best Practices in modern software development in a form that can be adapted for a wide range of projects and organizations.
• The UML provides a standard for the artifacts of development (semantic models, syntactic notation, and diagrams): the things that must be controlled and exchanged. But the UML is not a standard for the development process. Despite all of the value that a common modeling language brings, you cannot achieve successful development of today's complex systems solely by the use of the UML. Successful development also requires employing an equally robust development process, which is where the RUP comes in.
• Achieving Best Practices:
  • Iterative approach
  • Guidance for activities and artifacts
  • Process focus on architecture
  • Use cases that drive design and implementation
  • Models that abstract the system

• Examples:
  • The dynamic structure (phases and iterations) of the RUP creates the basis of iterative development.
  • The Project Management discipline describes how to set up and execute a project using phases and iterations.
  • Within the Requirements discipline, the Use-case model and the risk list determine what functionality you implement in an iteration.
  • The workflow details of the Requirements discipline show the activities and artifacts that make requirements management possible.
  • The iterative approach allows you to progressively identify components and to decide which one to develop, which one to reuse, and which one to buy.
  • The UML used in the process represents the basis of visual modeling and has become the de facto modeling language standard.
  • The focus on software architecture allows you to articulate the structure: the components, the ways in which they integrate, and the fundamental mechanisms and patterns by which they interact.

• A Team-Based Definition of Process:
  • A Process defines Who is doing What, When, and How, in order to reach a certain goal.

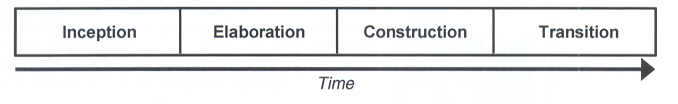

• Process Structure-Lifecycle Phases:
  • The RUP has four phases:
    • Inception: Define the scope of the project
    • Elaboration: Plan the project; specify features and baseline architecture
    • Construction: Build the product
    • Transition: Transition the product into the end-user community

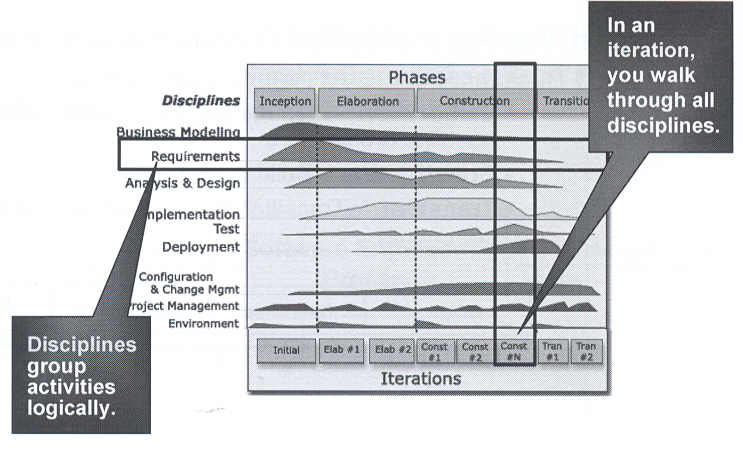

• The RUP disciplines:
  • Business Modeling: Encompasses all modeling techniques you can use to visually model a business.
  • Requirements: Defines what the system should do.
  • Analysis & Design: Shows how the system's use cases will be realized in implementation.
  • Implementation: Implements software components that meet quality standards.
  • Test: Integrates and tests the system.
  • Deployment: Provides the software product to the end-user.
  • Configuration & Change Management: Controls and tracks changes to artifacts.
  • Project Management: Ensures tasks are scheduled, allocated and completed in accordance with project schedules, budgets and quality requirements.
  • Environment: Defines and manages the environment in which the system is being developed.

Summary:

• Best Practices guide software engineering by addressing root causes.
• Best Practices reinforce each other.
• Process guides a team on who does what, when, and how.
• The Rational Unified Process is a means of achieving Best Practices.
